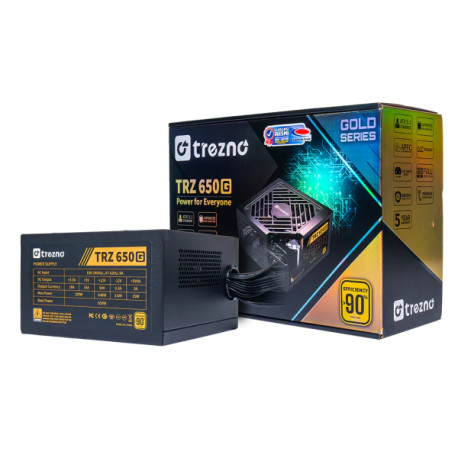

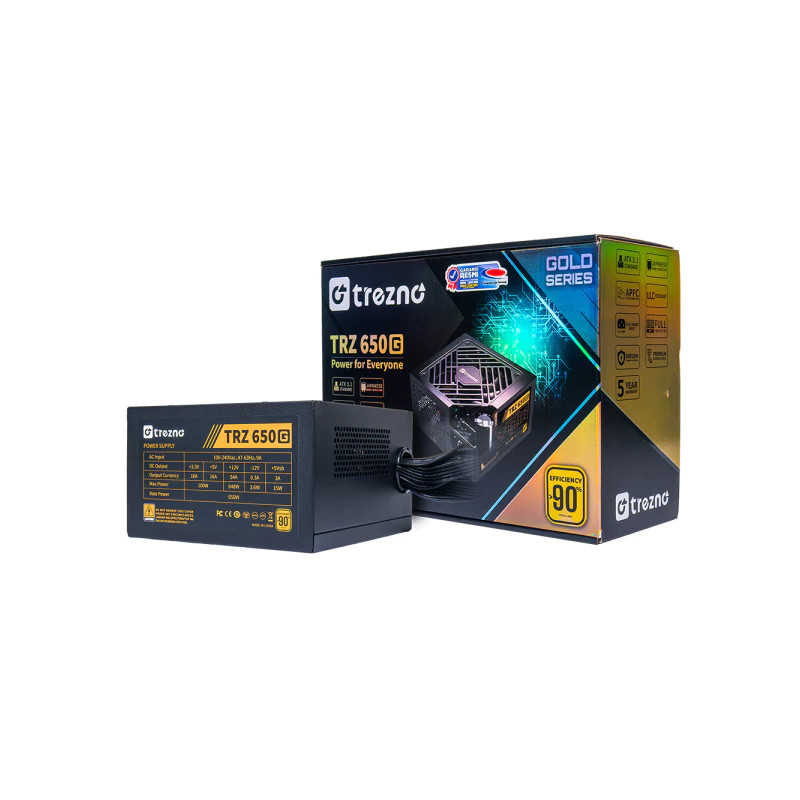

POWER SUPPLY TREZNO 650W GOLD 90% EFFICIENCY ATX 3.1 NON MODULAR - Kios Komputer

SPESIFIKASI

ATX 3.1 Standard

Full Range Input 110–240V

LLC Resonant

Japanese Main Capacitor

Inrush Current Protection

Full Protection (OVP / UVP / SCP / OPP / OCP)

Premium Flexible Cable

Efficiency 90% Typical Load

Independent Dual CPU Connector

Independent PCI Express Connector

5 Year Warranty

Spesifikasi :

Model

TRZ-650G

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

9A

Input Frequency

47-63Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2400 RPM (Max)

Efficiency

≥ 90% @ Typical Load

Efisiensi Rating

Setara Efisiensi 80 Plus Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥ 16ms

Protections

OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory

CE, FCC, CCC

Connectors

ATX 24 Pin Connectors : 1

EPS 4+4 Pin Connectors : 2

SATA Connectors : 4

Peripheral 4 Pin Connectors (Molex) : 2

PCI-e 6+2 Pin Connectors : 2

Series

Gold Series

Modular

Non Modular

Form Factor

ATX

Watts

650W
