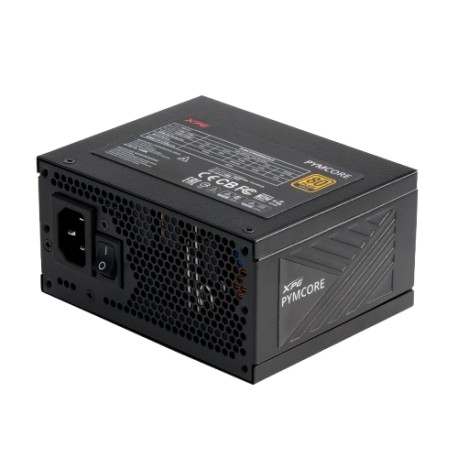

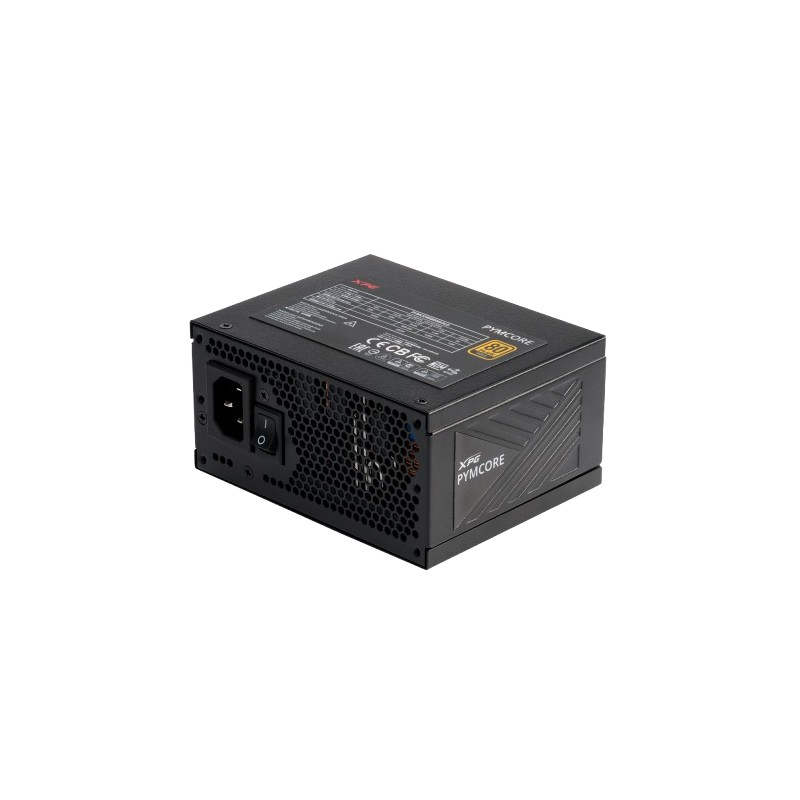

ADATA XPG PSU POWER SUPPLY PYMCORE 850W (80+ GOLD) FULLY MODULAR ATX 3.0 PCIE 5.0 BLACK

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review
ADATA XPG PSU POWER SUPPLY PYMCORE 850W (80+ GOLD) FULLY MODULAR ATX 3.0 PCIE 5.0 BLACK - Kios komputer

SPECIFICATIONS :

Certification: Cybenetics Platinum / 80 PLUS Gold

- ATX Version: Intel ATX V3.1

- PFC: 0.99

- Input Voltage: 100–240V

- Input Frequency: 50–60Hz

- Input Current: 10A

- DC Output Voltages: +5V / +3.3V / +12V / -12V / +5Vsb

- Total Output:

- 850W: +12V @ 70.8A

- 750W: +12V @ 62.4A

- Power Excursion:

- 850W: Up To 1997W (235% For 100µs)

- 750W: Up To 1762W

- Operating Temperature: 50°C

- Fan: 92mm Fluid Dynamic Bearing (FDB)

- Fan Speed:

- 850W: 3100±10 RPM

- 750W: 2300±10 RPM

- MTBF: 100,000 Hours @ 25°C At Full Load (Excluding DC Fan)

- Dimensions: 125 x 100 x 63.5 mm

- Weight:

- 850W: 1857.9g

- 750W: 1838.9g

- Warranty: 7 Years

Connectors:

- ATX 24 Pin: 1

- EPS 8 Pin (CPU): 2

- PCI-E 6+2 Pin: 3

- 12V-2x6 / 12VHPWR (12+4) Connector: 1 (600W)

- SATA: 6

- Molex 4 Pin: 2

Protections Included:

- OVP (Over Voltage Protection)

- OPP (Over Power Protection)

- SCP (Short Circuit Protection)

- OCP (Over Current Protection)

- UVP (Under Voltage Protection)

- OTP (Over Temperature Protection)

- NLO (No Load Operation)

- SIP (Surge & Inrush Protection)
