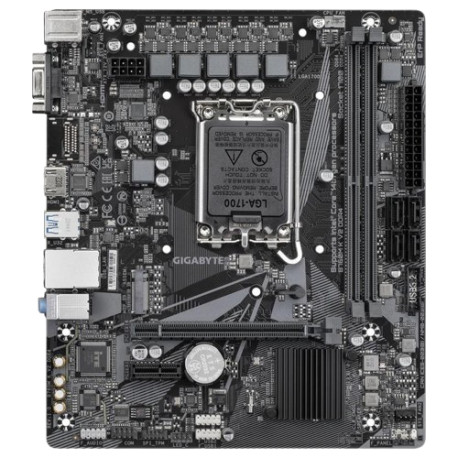

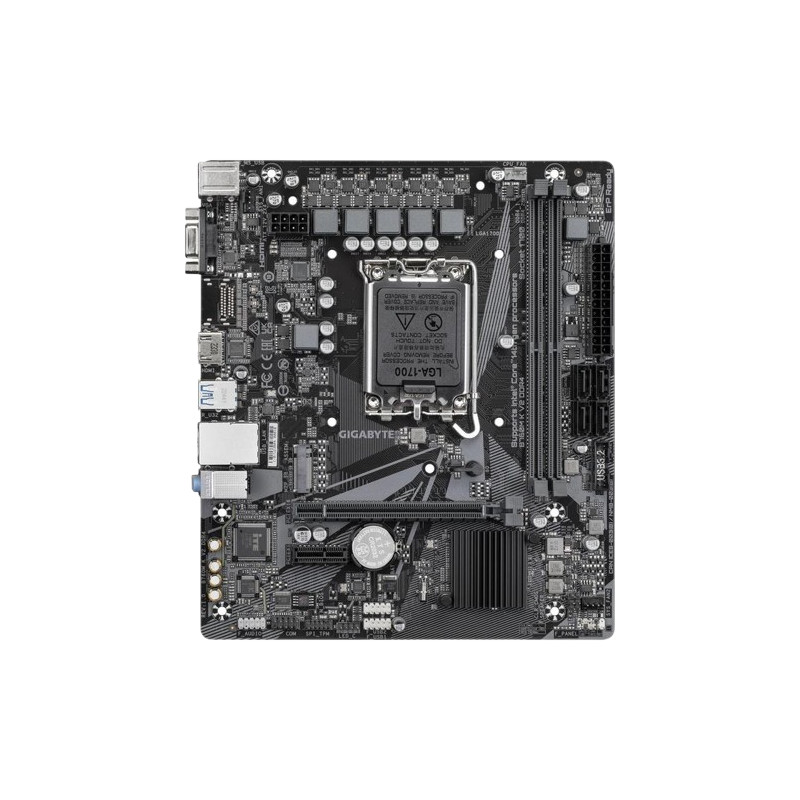

MOTHERBOARD GIGABYTE B760M K V2 DDR4

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review

MOTHERBOARD GIGABYTE B760M K V2 DDR4 - 1700 RL - Kios komputer

Prosesor : LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset : Intel B760 Express Chipset
Memori : Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Kartu Grafis Terintegrasi :
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio :
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN : Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Slot Tambahan :
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Antarmuka Penyimpanan :
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Form Factor : Micro ATX Form Factor; 22.3cm x 19.3cm
