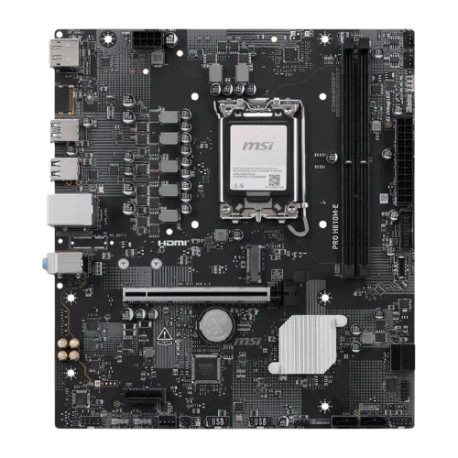

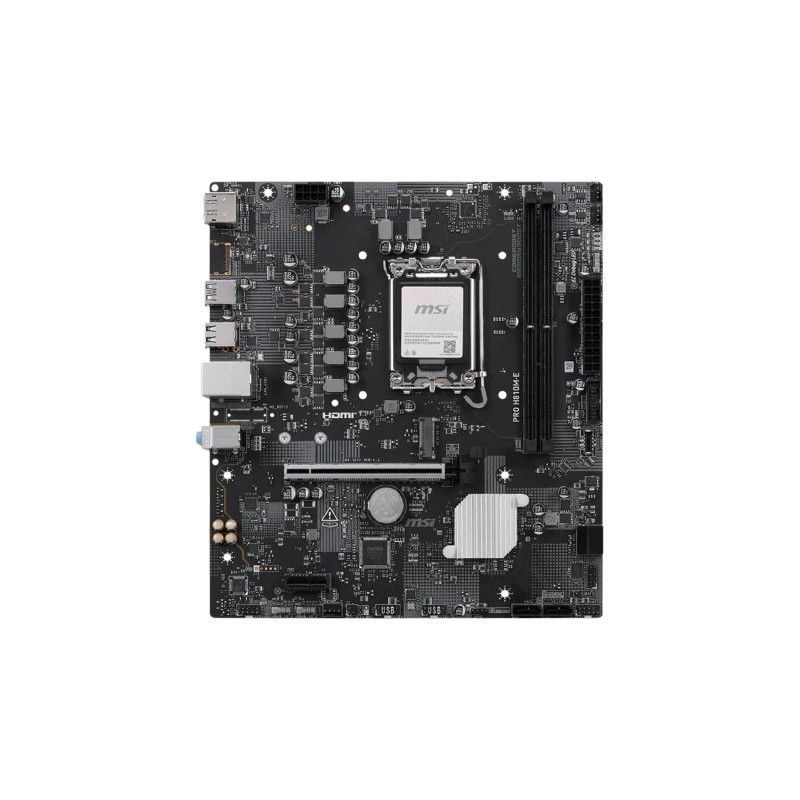

MSI PRO H810M-E | Motherboard Intel H810 LGA 1851 DDR5 mATX

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review
MSI PRO H810M-E | Motherboard Intel H810 LGA 1851 DDR5 mATX - Kios komputer

SPESIFIKASI :

Chipset

- INTEL H810

CPU

- Supports Intel Core Ultra Processors (Series 2)

- LGA 1851

Memory

- 2x DDR5 UDIMM, Maximum Memory Capacity 128GB

- Memory Support DDR5 6400 - 4800 (JEDEC) MT/s

Onboard Graphics

- 1x HDMI

Support HDMI 2.1, maximum resolution of 4K 60Hz*

- 1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

Slot

- 1x PCI-E x16 slot

- 1x PCI-E x1 slot

Audio

- Realtek ALC897 Codec

- 7.1-Channel High Definition Audio

Storage

- 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

- 4x SATA 6G

USB

- 4x USB 2.0 (Rear)

- 4x USB 2.0 (Front)

- 2x USB 5Gbps Type A (Rear)

- 2x USB 5Gbps Type A (Front)

- 1x USB 10Gbps Type C (Front)

LAN

- Realtek 8125 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

OPERATING SYSTEM

- Support for Windows 11 64-bit

PCB Info

- mATX

- 220mmx243.84mm
