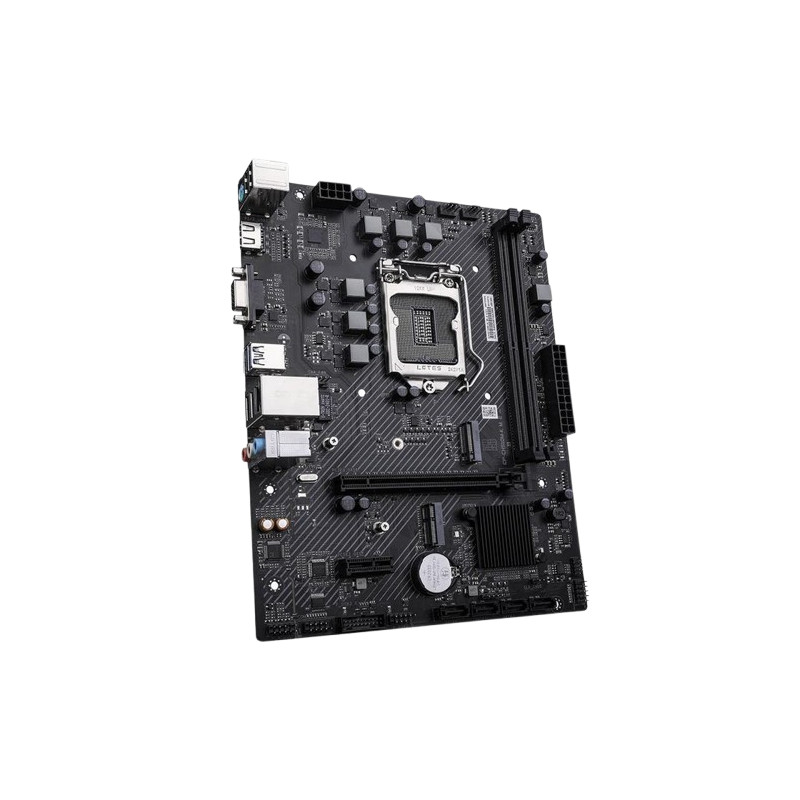

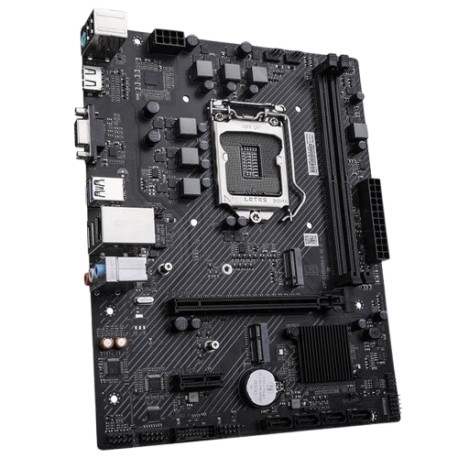

MOTHERBOARD COLORFUL CH510 CH510M-K M.2 V21 LGA 1200 - Kios komputer

SPESIFIKASI :

    CH510M-K M.2 V21

Product Series

COLORFUL series

Chipset

Intel H470,Intel H510

Processor

11th and 10th generation Intel compatible with LGA 1200 slot motherboard; CoRE Pentium And Saiyang Processor

2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-3200/2933/2666/2400MHz memory

- Supports dual channel memory technology

1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces

- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4, PCH channel)

Board I/O

Rear I/O ports:

-4 USB 2.0 ports

-2 USB 3.2 Gen 1 Type-A ports

-1 HDMI 2.0 port, supporting up to 4K 60Hz resolution

-1 VGA port

-1 PS/2 port

-1 Gigabit network port

-3 audio ports (audio input/output/microphone)

Onboard device ports:

-2 CPU fan pins

-1 system fan pin

-1 USB 2.0 pin expandable 2 USB 2.0 Type-A ports

-1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A ports

-1 front audio pin

-1 front panel pin

-1 speaker pin

-1 serial port pin

-1 clear CMOS jumper

-1 BIOS jumper Burner pin

-1 PS/2 wake-up control jumper

Expansion Slots

1 PCIe 3.0 x16 slot

1 PCIe 3.0 x1 slot

BIOS

128M UEFI, support multiple languages

Power Management

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN

RTL8111H Gigabit Network Card

Audio

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration

M-ATX

235mm x 185mm
