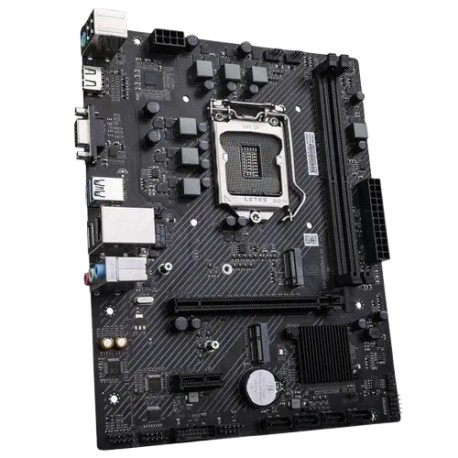

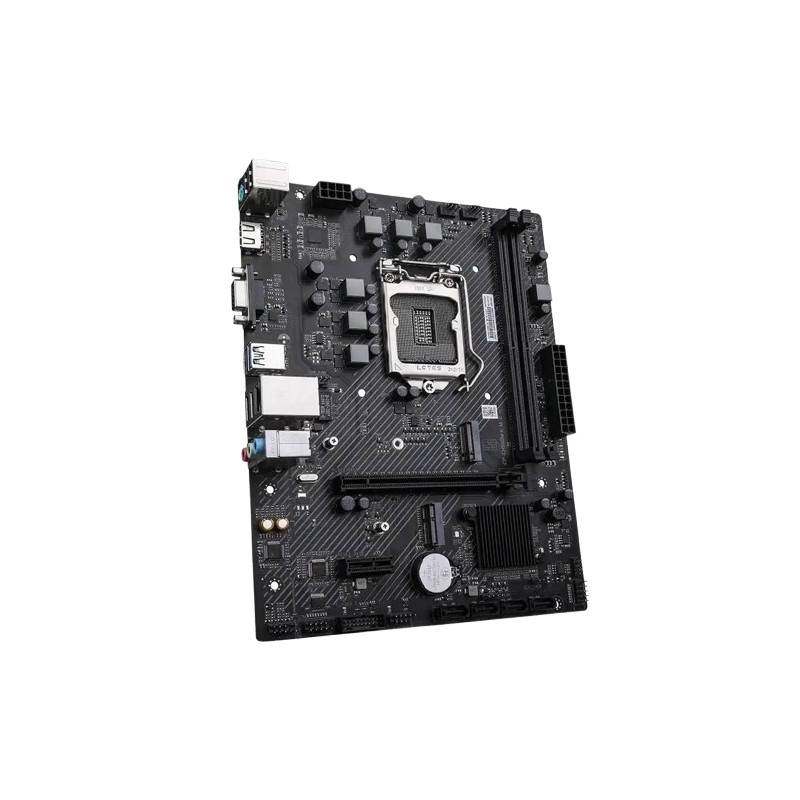

MOTHERBOARD COLORFUL H510M-K H510MK M.2 V21

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review

MOTHERBOARD COLORFUL H510M-K H510MK M.2 V21 - Kios komputer

SPESIFIKASI ;

Model : CH510M-K M.2 V21

Product Series : COLORFUL series

Chipset : Intel H470,Intel H510

Processor : 11th and 10th generation Intel® compatible with LGA 1200 slot motherboard; CoRE ™、 Pentium® And Saiyang® Processor

Memory : 2x DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-3200/2933/2666/2400MHz memory

- Supports dual channel memory technology

Graphics Support : 1x HDMI 2.0 port, 1x VGA port

Storage Ports : 1x M.2 slot and 4x SATA 6Gb/s hard disk interfaces

- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4, PCH channel)

Board I/O

Rear I/O ports:

-4 USB 2.0 ports

-2 USB 3.2 Gen 1 Type-A ports

-1 HDMI 2.0 port, supporting up to 4K 60Hz resolution

-1 VGA port

-1 PS/2 port

-1 Gigabit network port

-3 audio ports (audio input/output/microphone)

Onboard device ports:

-2 CPU fan pins

-1 system fan pin

-1 USB 2.0 pin expandable 2 USB 2.0 Type-A ports

-1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A ports

-1 front audio pin

-1 front panel pin

-1 speaker pin

-1 serial port pin

-1 clear CMOS jumper

-1 BIOS jumper Burner pin

-1 PS/2 wake-up control jumper

Expansion Slots : 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot

BIOS : 128M UEFI, support multiple languages

Power Management : Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor : CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN : RTL8111H Gigabit Network Card

Audio : Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration : M-ATX 235mm x 185mm
