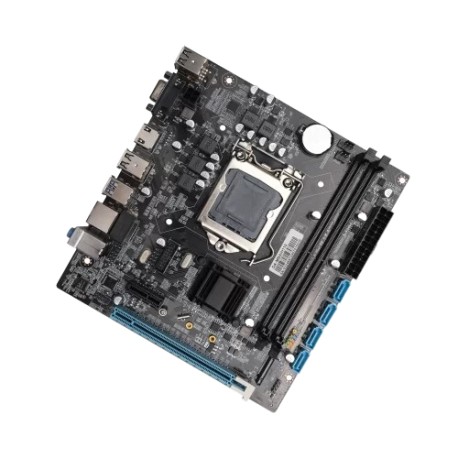

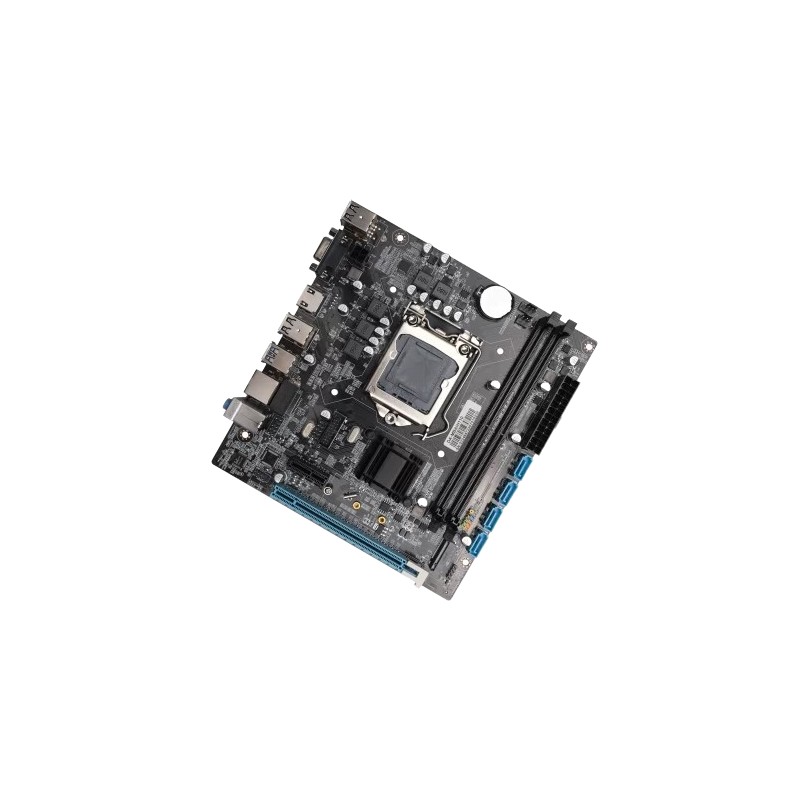

MOTHERBOARD H110 POWERMAX LGA 1151 DDR4 INTEL GEN 6 7

BUTUH PENAWARAN?

    Hubungi Sales kami untuk membantu anda.

_________________________________________________________________________________

BELI MELALUI TELEPON
Beli via telepon? Bisa! Silakan hubungi kami di (0341) 488 134 Sales kami siap memberikan saran terbaik untuk Anda.

BAYAR DI TEMPAT (TOKO)
Anda juga dapat datang langsung ke tempat kami untuk membeli dan memilih barang yang anda inginkan.
Lihat Lokasi Toko kami : KLIK DSINI

Online Marketing

Support Intel® Socket 1151 for 6th/7th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset Intel® H110 Chipset

Memory

Support

2 * DDR4 2133MHz DIMM ,

Dual channel memory architecture

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI / VGA ports

Slots

1 x PCIe 3.0/2.0 x16 slot

Storage

4 x SATA 6Gb/s Ports

LAN Realtek Chip, 1 x 100M（Optional 1000M）

Audio Realtek Chip, ALC 662 6-channel audio

USB 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)

6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)

Back Panel I/O

1 x VGA Port

1 x HDMI Port

1 x LAN (RJ45) Port

2 x USB 3.1 Gen 1 Ports(Blue)

4 x USB 2.0 Ports

3 x flexible audio jacks

Internal I/O

1 x USB 3.1 Gen 1 connector（19pin)， supports 2*USB 3.1 Gen 1 ports

1 x USB 2.0 connector， supports 2*USB 2.0 ports

4 x SATA 6Gb/s Ports

2 x 4 -pin CPU_FAN/SYS_FAN connectors

1 x 24-pin ATX power connector

1 x 4-pin 12V ATX Power connectors

1 x F_Audio connector

1 x Internal Speaker connector

1 x F_Panel connector

Dimension 195 x 168mm
