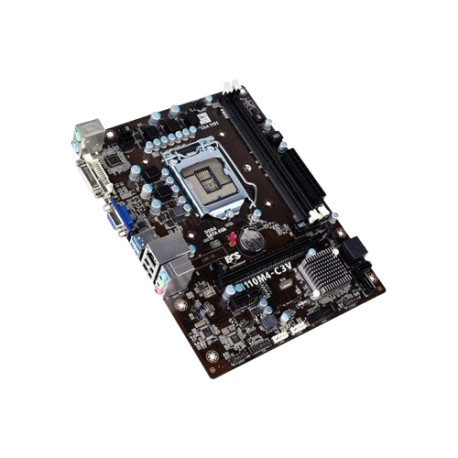

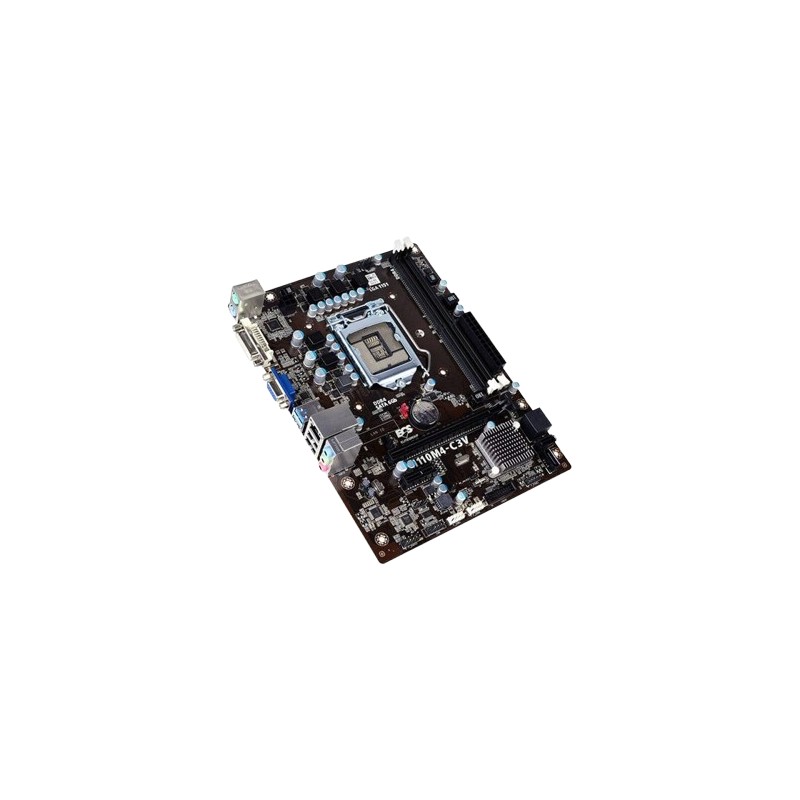

MOTHERBOARD ECS H110M FOR INTEL LGA1151

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review

MOTHERBOARD ECS H110M FOR INTEL LGA1151 - Kios komputer

SPECIFICATION :

CHIPSET :
Intel H110 Express Chipset

GRAPHICS :
Supports DirectX 12

MEMORY :
Dual-channel DDR3L Memory architecture
Supports DDR3L 1600 non-ECC, Un-buffered SDRAM Memory
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT :
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)

STORAGE :
Support by H110 Express Chipset
4 X Serial ATAIII 6Gb/s

AUDIO :
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC

LAN :
Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN

USB :
Support by H110 Express Chipset

4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s

---- Back Panel 2 port(s)

6 X USB2.0 port(s) Up to 480 Mb/s

---- Back Panel 2 port(s)

REAR PANEL I/O :
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
2 X USB 3.2 Gen 1x1 port(s)
2 X USB2.0 port(s)
