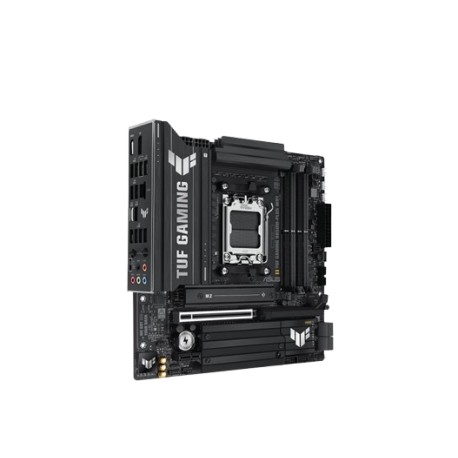

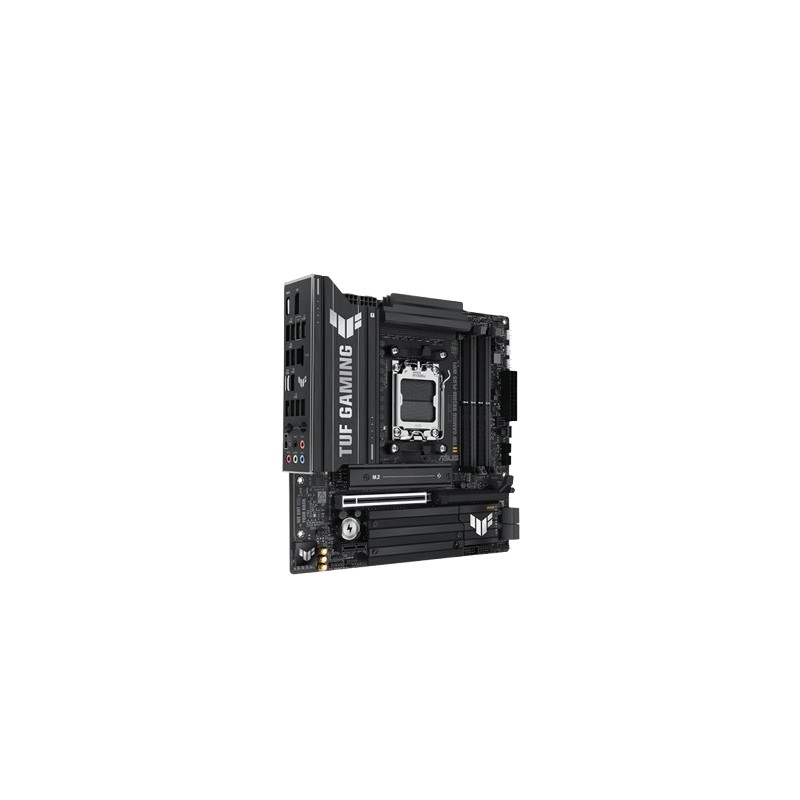

MOTHERBOARD ASUS TUF GAMING B850M-PLUS WIFI

_________________________________________________________________________________

Kami mencoba untuk menyajikan data seakurat mungkin, namun untuk kepastian, disarankan untuk merujuk pada spesifikasi resmi pada situs-situs produk yang bersangkutan.
Bila Anda menemukan kesalahan dalam database kami, silahkan beritahu kami, sehingga Anda pun ikut membantu pengunjung lain mendapatkan data yang benar.

_________________________________________________________________________________

Harga, Jual, Spesifikasi, Review

MOTHERBOARD ASUS TUF GAMING B850M-PLUS WIFI - Kios komputer

Spesifikasi :

Chipset

AMD B850 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x DisplayPort**

1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)***

2 x PCIe 4.0 x1 slots

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

* Specifications vary by CPU types.

** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

AMD RAIDXpert2 Technology

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth v5.4***

* Wi-Fi features may vary depending on the operating system.

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)

1 x USB 20Gbps port (1 x USB Type-C)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 10Gbps connector (supports USB Type-C)
